RF Modules (SPI Interface)

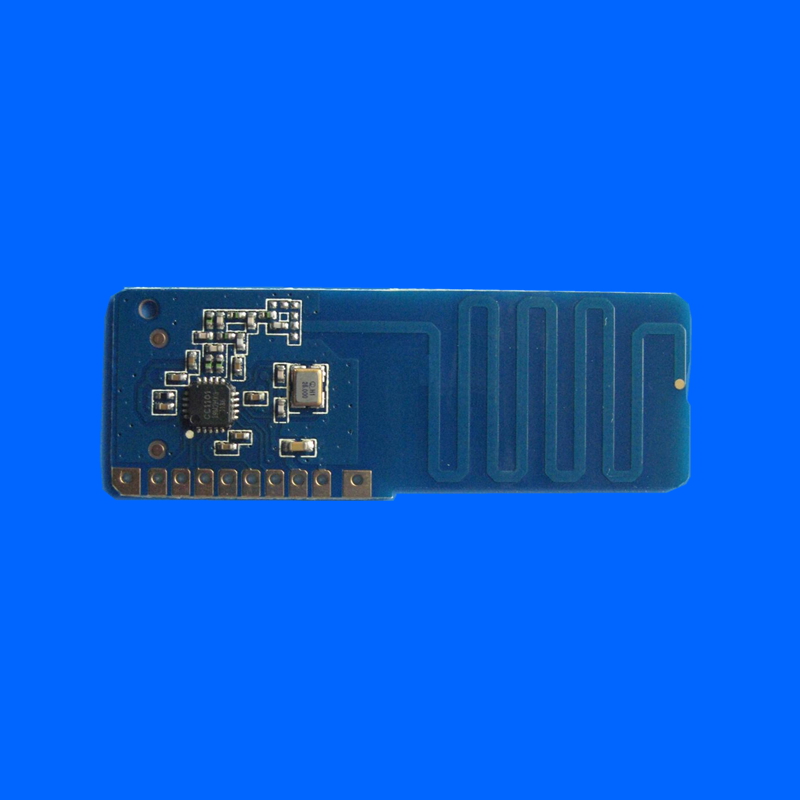

● Radio Chip: TI CC1101
● Frequency Band: 868MHz
● Embedded PCB antenna
● Integrated FEC,high sensitivity.
● Programmable data rate up to 500 kbps.
● Separate 64-byte RX and TX data FIFOs.
● Efficient SPI interface: All registers can be programmed with one “burst” transfer
● Wake-on-radio functionality for automatic low-power RX polling
● Many powerful digital features allow a high-performance RF system to be made using an inexpensive microcontroller
● Integrated analog temperature sensor
● Ideal for multi-channel operation
● 2-FSK,GFSK,MSK and OOK supported
● Small size: L x W x H = 50mm x 18mm x 2mm
● Interface footprint : 2.0mm solder pad or pin header
● Interface pin assignment compatible with module VW1101M
Major parameters:

 Radio Chip:
 TI CC1101
 Frequency band:
 Max. Tx. Power:
 RF data rate:
 Supply Voltage:
 1200bps ~ 256kbps
 Channel numbers:
 Operate temperature:
 -45 ~ +85
 Size (L x W x H):
 50mm x 18mm x 2mm
 Interface footprint :
 2.0mm SMT solder pad or pin header

Major applications:
  • Water,electricity,gas and other automatic meter reading (AMRsystem;
  • Building automation system; Security entry system;
  • Intelligent traffic; Vehicle Control;
  • Wireless scanner;
  • Restaurant Order System Management;
  • Industrial control,remote sensing,automatic data collection system;
  • Wireless data transmission; Digital audio,digital image transmission;
  • Wireless electronic display screen;
  • Telemetric systems
  • Oil Well Measuring,Environmental Protection Monitoring
  • Hydrology Water Level Monitoring
  • Robot Controls
  • Wireless conference system; Wireless microphone solutions
  • etc.
